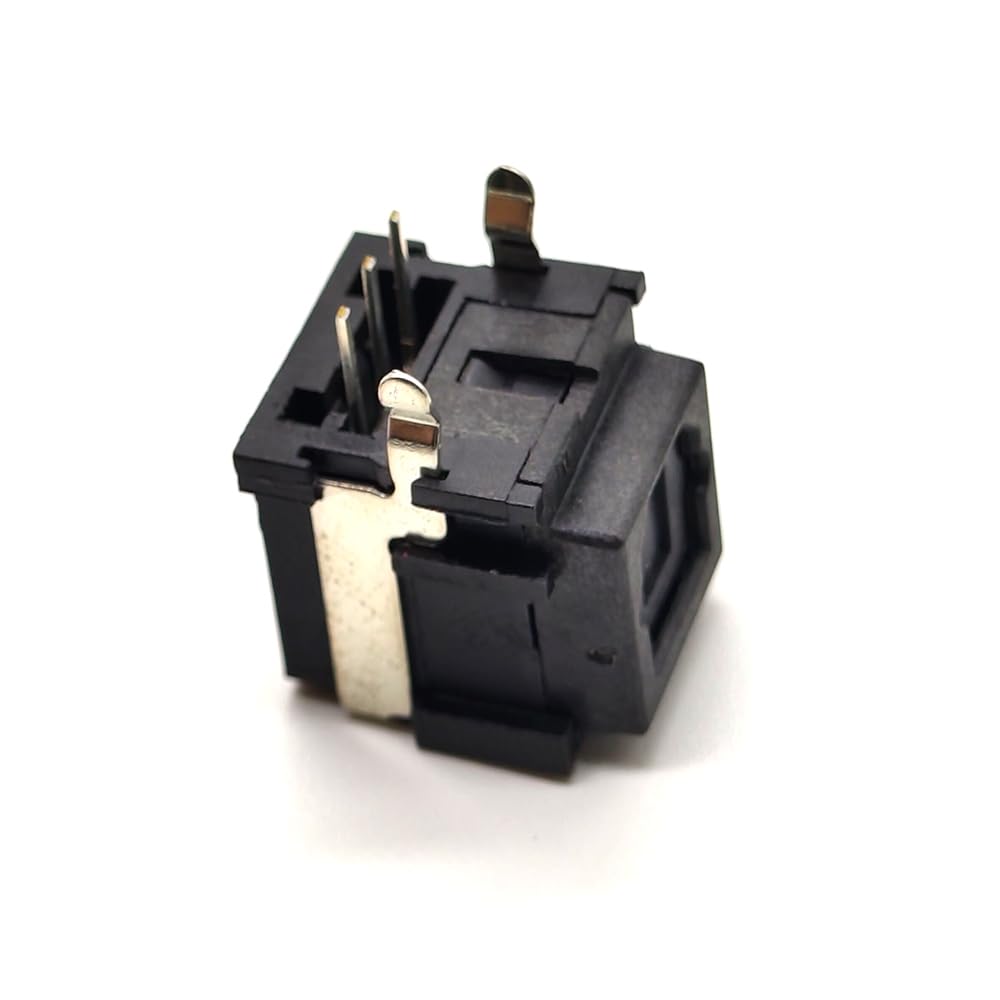

Toslink Connector Receiving + Transmitting Socket Optical Fiber Right Angle Panel Mount with self Tapping Hole（Receive + Transmit

Applications:Household appliancesTransmission of Electrical Signalslightingmedical equipmentcommunications and networking equipmentinstrumentationTV camera vedio speaker computer or mobile phone chargerTechnical Parameters:Environmental CharacteristicsVoltage Rating: 30VCurrent Rating:0.5AContact Resistance Less 50M ohmInsulation Resistance Over 100M ohmDielectric Withstanding: 1000V 50/60hz last for 1minWithstand Voltage AV250V(50Hz)/MinElectrical Life：Over 800000 timesSupply Voltage: -0.5 to 7.0V maximum.Input Voltage: -0.5 to +0.5V maximum.Operating Temperature: -20 deg. C to +70 deg. C maximum.Storage Temperature: -30 deg. C to +80 deg. C maximum.Soldering Temperature: 260 deg. C maximum.Mechanical CharacteristicsInstallation angle : Straight/ Right AngleConnector Mounting Type : Panel Mount/PCB MountMechanical Life：Over 10000 timesInsertion Force: 5.9N minimum, 39.2N maximum.Withdrawal Force: 5.9N minimum, 39.2N maximum.Environmental CharacteristicsAmbient temperature: -20°C to 80°CMaterial:Material：Copper

• Single fiber optic socket, Receive + Transmit, black,jack,Right angle,hole,panel mount,with self tapping hole Shutter
• high-quality recording and high speed signal receiving;
• A long shelf life of 10000 insertions and withdrawals;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.
